3 Star Standard Builder Series

  • Technology :

    Non Inverter

  • Star Rating :

  • Capacity kW :


  • Compressor Warranty :

    5 Yrs

Introducing Daikin’s GTL series with Auto Fan Speed feature. It helps you avoid the hassle of finding the perfect setting for your surroundings by automatically setting the fan speed. With features like Child Lock and Self-Diagnosis, you can make your experience seamless.

Salient Features

1 Year Comprehensive Warranty on Machine

Leave your breakdown worries out of the window when you buy a new Daikin AC! Enjoy a 1 year comprehensive warranty on the machine which covers both small or big problems in the main unit, if any.

5 Years Warranty on Compressor

Enjoy long term assurance with 5 Years of peaceful cooling at your house. Daikin provides you tension-free comfort for whole five years with a warranty on your air conditioning system's compressor.

Air Throw 16* Meters (52 Feet)

With the Cross Flow Evaporator Fans, Daikin air conditioners' every product is perfected and re-perfected to ensure they deliver and carry the badge of trust. Air flow upto 16* metres (52 feet) away from the unit ensures uniform and powerful cooling.

Air throw given for 5.28KW (1.5 TR) capacity, may vary model to model

Anti Corrosion Treatment

Live a worry-free life with Daikin's Anti Corrosion Treatment. Daikin ACs come with a special coating which prevents the rusting of the copper coil, thus, ensuring a long life of your device and eliminating your trouble.

Auto Fan Speed

The Auto Fan Speed feature saves you the trouble of multiple remote clicks to find the optimum feel for your room! It adjusts the speed according to ambient conditions and performance for ease.

Auto Restart (After Power Failure)

Sudden power cut? No issues! The air conditioner memorises the settings for mode, airflow, temperature, etc. and automatically returns to them when power is restored after a power failure.

Child Lock

The Child Lock feature disables all the buttons except the Child Lock button itself. This function prevents children from operating the remote controller by mistake. For a hassle-free and comfortable life, choose Daikin.

Coanda Airflow

Make way for effective air circulation and efficient temperature distribution with Daikin’s Coanda airflow, designed to give the best air-conditioning experience. This function ensures cooling even in corners of the room by streaming cool air upwards along the ceiling, avoiding furniture or obstructions.

DNNS Self Heal

Every Daikin Room AC’s Indoor Unit (U-bend side) is coated with advanced anti-corrosive coating active agent DNNS (Di-Nonyl Nephthalene Sulfonic Acid). The coating has Self Healing properties that activates upon chipping, scratches due to environmental or chemical pollution.

Dry Mode Function

Living in a hot and humid place? No problem! Eliminate humidity while maintaining the indoor temperature with the New Dry Mode Function. It automatically controls temperature and airflow rate. Rewind, relax, and rejuvenate.

Econo Mode

Set the limit for power consumption with Daikin's ECONO mode feature. This function enables efficient operation by limiting the maximum power consumption. Taking one step towards Daikin's future innovation.

Good Sleep Off Timer

Assure comfortable sleep by preventing excessive cooling of the room with a temperature shift value setting. The set temperature increases by 0.5°C at 30-minute intervals, giving you a better experience.

Power-Airflow Dual Flaps

The Power-Airflow Dual Flaps along with the Crossflow Evaporator fans ensure even distribution of cool air in both small and large spaces, making sure you are comfortable at all times.


The machine auto detects the error and shows the related code on the remote screen. Now you can easily self diagnose the error and report it to your Daikin authorised service centre for a quick resolution.

Smell Proof Operation

Daikin’s Smell Proof operation prevents unpleasant odour inside the indoor unit. This function is available in both Dry and Cool modes. Choose your ambience, as you like it with Daikin air conditioners.

Stabilizer Free

This feature ensures that the air conditioner operates seamlessly even during voltage fluctuations. It optimizes energy consumption and protects the electrical components of the AC during power fluctuations.

Wide-Angle Louvers

Don't want just one part of the room to get too cold? Don't worry, the Wide-Angle Louvers of Daikin air conditioners help distribute cool air evenly across the entire length and breadth of your room without any obstruction or excessive cooling.

Wipe Clean Flat Panel

Clean flat panel with ease! The white AC panel is easy to keep clean from dust and other particles in air. A swift wipe with a clean cloth would remove dust without any hassle and struggle. Cleaning has never been this easy.


Model nameIndoor unit (IDU)GTL28UV16W1
Outdoor unit (ODU)RLG28UV16W1

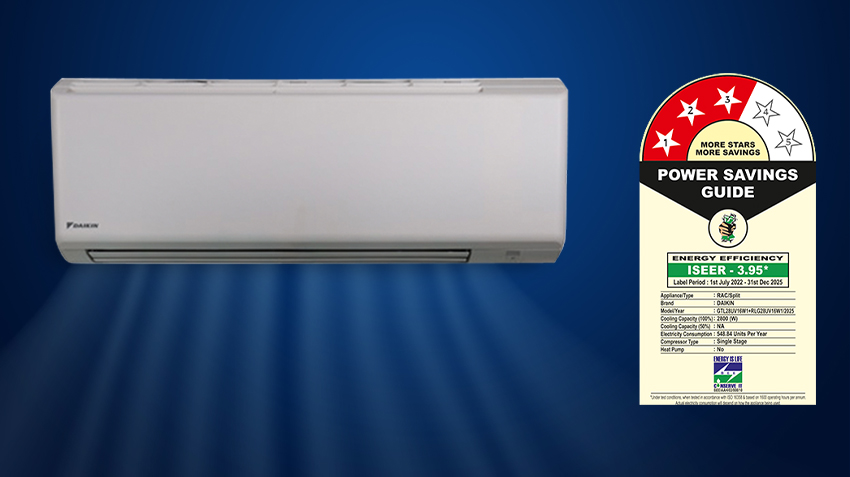

Star Rating* 3 Star
Rated Power SupplyPhase/Frequency/Voltage1φ/50Hz 230V
Power Supply Intake Outdoor unit
Rated Cooling CapacitykW2.8
Cooling capacity @ 43°C%100%
Rated Power ConsumptionW709
Rated Annual Power ConsumptionkWh548.84
Rated ISEERWh/Wh3.95
Voltage Range (Stabilizer Inside)VYes
Operating CurrentA3.18

Indoor unit (IDU)

Panel Colour White
IDU Dimension (HxWxD)mm298x800x229
Package Dimension (HxWxD)375x895x325
IDU Net Weight (Gross Weight)kg9.5 (12)
Airflow RateFeet3/min (cfm)473
m3/min (cmm)13.4
Moisture Removall/hr (Litres/Hour)0.5
Operation Sound H/M/LdBA43/37/32

Outdoor unit (ODU)

ODU Dimension (HxWxD)mm550x675x284
Package Dimension (HxWxD)620x825x400
ODU Net Weight (Gross Weight)kg26.5 (31)
Compressor Type Rotary Compressor
Refrigerant R-32
Breaker SizeA15
Piping LengthCharge-Lessm10
Max. Length20
Max. Height15
Piping ConnectionGas / Liquidmm (Inch)φ9.5/φ6.4(3/8"/1/4")
Operating Ambient Temperature RangeCooling (Min~Max)°C DB19.4~50
Measurement conditions:

Cooling capacity is based on: indoor temp. 27°C DB, 19°C WB; outdoor temp. 35°C DB, piping length 5 m.


Sound levels are based on temperature conditions 1. above with 5m piping length. These are anechoic conversion values. These values are normally somewhat higher during actual operation as a result of ambient conditions.

Cooling and heating capacities above are rounded off to first decimal. 1TR (Ton of Refrigeration) = ~3.517 kilowatt.

*Star Rating mentioned above is as per norms defined by Bureau of Energy Efficiency, Ministry of Power, Government of India.
"Value given in Inch. #As per Continuing Policy of Product Innovation at Daikin, The Design, Technical Specifications, Features, Look may change without prior notice.
#Daikin's KATAI technology is a supreme outdoor unit alloy heat exchanger technology to increase the durability and longevity of the air conditioner.
