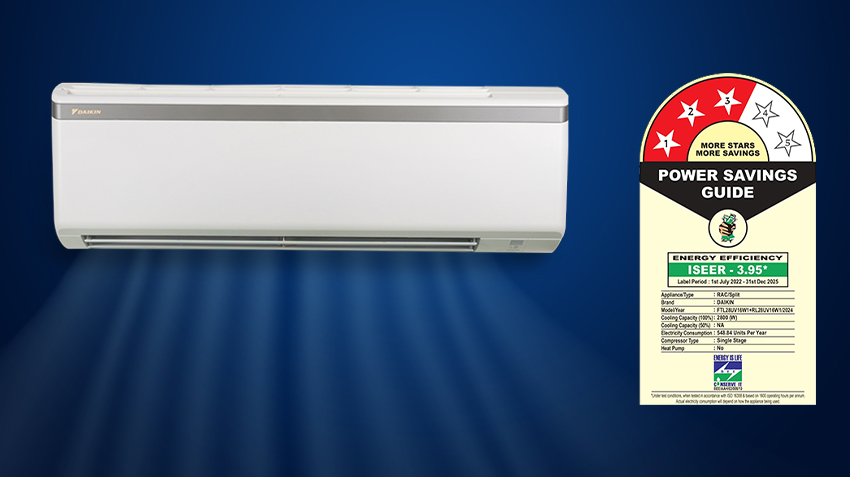

FTL28

Stabilizer free Experience Elegance in Air-conditioning

Now get an elegance-loaded air conditioning experience with Daikin's FTL28. Designed keeping in mind's today's dynamic air conditioning needs, this series strives to deliver comfortable room conditions & maximize energy Savings

Star Rating:

Technology:

Refrigerant:

Salient Features

Coanda airflow

Coanda airflow
Make way for effective air circulation and efficient temperature distribution with Daikin’s Coanda airflow, designed to give the best air-conditioning experience. This function ensures cooling at corners of the room by streaming cool air upwards along the ceiling avoiding furniture or obstruction.

Econo mode

Econo mode
Set the limit for power consumption with Daikin's ECONO mode feature. This function enables efficient operation by limiting the maximum power consumption. This mode is one step towards Daikin's future innovation.

Good sleep off timer

You can prevent excessive cooling of the room during sleep by setting a temperature shift value. The air conditioner automatically stops after the pre-set time has elapsed. The set temperature increases by 0.5°C in 30 minutes until the total increase reaches the specified shift value.

PM2.5 filter

Live life pollutants free with Daikin's highly efficient air purifiers. The PM2.5 air purifier filter traps fine air particles 2.5 microns in width, giving you a clean and healthy indoor air.

Power chill operation

Cool down your house so fast even when outside temperature is soaring. Daikin's Power Chill operation Cools down 20% faster as compared to normal mode. Power chill ensures room temperature drops rapidly for immediate comfort.

Specification

Model nameIndoor unitFTL28TV16X2
Outdoor unitRL28TV16X2
Power supply1 50Hz 230V
(220-240V)
 Power supply intakeOutdoor unit
Cooling capacitykW2.8
RatedBtu/h9555
Power consumptionW767
Annual power consumptionkwh594
ISEERW/W3.65
Star Rating 3*
Operating currentCoolingA3.4
Indoor unit
Panel colourWhite
Dimensions HxWxDmm283 x 800 x 198
(Package dimensions)mm(265 x 855 x 340)
Weight (Gross)kg8 (12)
Airflow rate (Cooling/Heating) *1 X(Y)m3/min.9.7 (8.6)
Feet3/min (CFM)343(304)
Operation sound H/M/ML/L/SLCoolingdBA39/35/29
Outdoor unit
Dimensions (H x W x D)mm550 x 765 x 285
(Package dimensions)mm642 x 932 x 380
Weight (Gross)kg28 (36)
Operation sound (H)CoolingdBA51
Breaker sizeA15
Piping lengthCharge-lessm10
Max. lengthm20
Max. heightm15
Piping connectionGas/Liquidmm9.5/ 6.4
Operation limitCoolingoCDB19.4~52

Measurement conditions:

  • Cooling capacity is based on: indoor temp. 27° CDB, 19° CWB; outdoor temp. 35° CDB, piping length 5 m.
  • Sound levels are based on temperature conditions 1. above with 5m piping length. These are anechoic conversion values. These values are normally somewhat higher during actual operation as a result of ambient conditions.

Cooling and heating capacities above are rounded off to first decimal. 1TR (Ton of Refrigeration) = ~3.517 kilowatt.

* X(Y) X-Air flow rate during fan operation.
Y-Air flow rate in wet (cooling) condition.

AS A PART OF CONTINOUS DEVELOPMENT AND UPGRADATION THE PRODUCT IMAGE/ACCESSORY/FEATURE MAY BE DIFFERENT FROM ACTUAL PRODUCT AT THE TIME OF PURCHASE.
