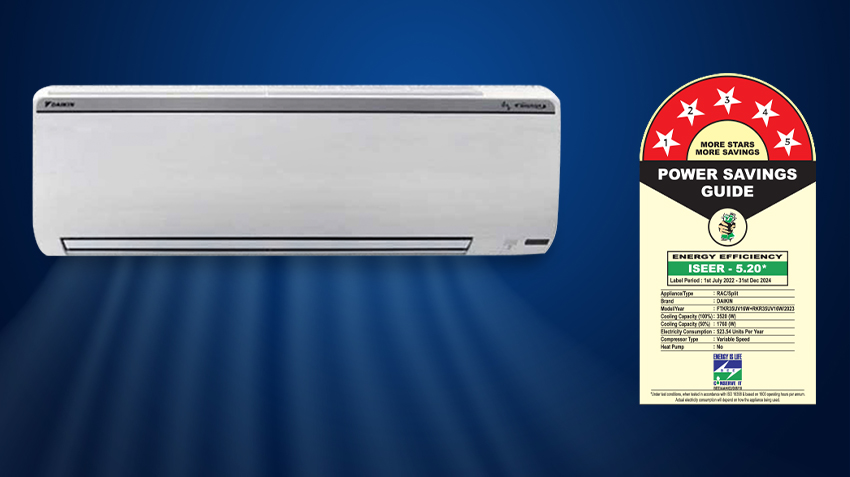

FTKR

Stabilizer Inside IoT Enabled Air-conditioning

Designed for smart cooling Daikin’s FTKR Series is poised to deliver smart air conditioning experience. From Power Chill operation to Voice control through Google and Alexa this power-packed machine is truly beyond imagination.

Product category:

Available in (kW):

Salient Features

Indoor unit quiet operation

Indoor unit quiet operation
This feature ensures low noise level resulting in sound sleep. It optimises the speed of the airflow according to low noise level to give you uninterrupted comfort.

Mobile App Controlled

Mobile App Controlled

Power chill operation

When the rooms needs to be cooled quickly in extreme heat, power chill ensures that the room temperature drops fast for immediate comfort.

Room Temperature Display at Indoor Unit

Room Temperature Display

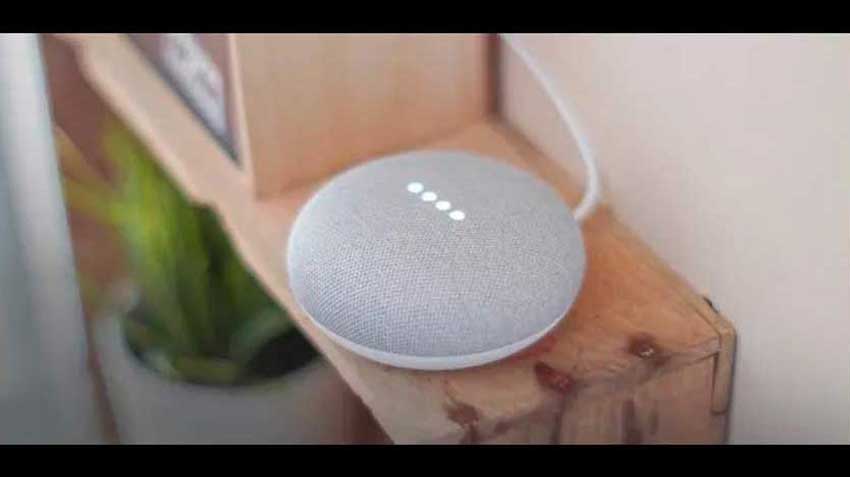

Voice controlled with Alexa & Google Home

Voice controlled with Alexa & Google Home

Specification

Model nameIndoor unitFTKR35TV16WFTKR50TV16UFTKR60TV16U
Outdoor unitRKR35TV16WRKR50TV16URKR60TV16U
Power supply1 50Hz 230V1 50Hz 230V1 50Hz 230V
(220-240V)(220-240V)(220-240V)
 Power supply intakeOutdoor unitOutdoor unitOutdoor unit
Cooling capacity Rated Full/Half (min.~max.)kW3.5/1.75(1.75 ~4.0)5.0/2.5 (2.5~5.7)6.0/3.0 (2.5~6.7)
Cooling capacity Rated Full/Half (Min.~Max.)Btu/h11900/5970 (6000~13600)17100/8500 (8500~19400)20500/10240 (8500~22900)
Power consumption Rated Full/Half (min.~max.)W999/330 (330-999)1415/475 (475-1750)1665/580 (580-1665)
Annual Power consumptionkWh577824989
ISEER / Star RatingWh/Wh4.70 / 5*4.70 / 5*4.70 / 5*
Voltage RangeV160-265160-265160-265
Operating currentCoolingA4.676.377.4
Indoor unit
Panel colour WhiteWhiteWhite
Dimensions HxWxDmm298 x 800 x 229298 x 885 x 229298 x 885 x 229
(Package dimensions)mm375X895X325375 x 980 x 325375 x 980 x 325
Weight (Gross)kg10(14)11(16)11(16)
Airflow rate *1 X(Y)m3/min.13.4(11.9)15.4 (13.7)16.3 (14.8)
Feet3/min (CFM)473(420)544(484)576(523)
Operation sound H/M/ML/L/SLCoolingdBA40/36/32/29/2645/42/40/38/3547/45/43/40/38
Outdoor unit
Dimensions (H x W x D)mm550 x 765 x 285595 x 845 x 300595 x 845 x 300
(Package dimensions)mm642 x 932 x 380680 x 1035 x 410680 x 1035 x 410
Weight (Gross)kg32(38)36 (44)39(47)
Operation sound (H)CoolingdBA515456
Breaker sizeA152020
Piping lengthCharge-lessm101010
Max. lengthm203030
Max. heightm152020
Piping connectionGas/Liquidmm9.5/ 6.412.7/ 6.412.7/ 6.4
Operation limitCoolingoCDB19.4~5219.4~5219.4~52

Measurement conditions:

  • Cooling capacity is based on: indoor temp. 27° CDB, 19° CWB; outdoor temp. 35° CDB, piping length 5 m.
  • Sound levels are based on temperature conditions 1. above with 5m piping length. These are anechoic conversion values. These values are normally somewhat higher during actual operation as a result of ambient conditions

Cooling and heating capacities above are rounded off to first decimal. 1TR (Ton of Refrigeration) = ~3.517 kilowatt.

* X(Y) X-Air flow rate during fan operation.
Y-Air flow rate in wet (cooling) condition.

For the complete feature list please refer pages 39 - 40.

Note: Air Conditioner cloud connectivity subscription for one year comes along with the product. Post one year, subscription needs to be renewed by the customer.

AS A PART OF CONTINOUS DEVELOPMENT AND UPDGRADATION THE PRODUCT IMAGE/ACCESSORY/FEATURE MAY BE DIFFERENT FROM ACTUAL PRODUCT AT THE TIME OF PURCHASE.
