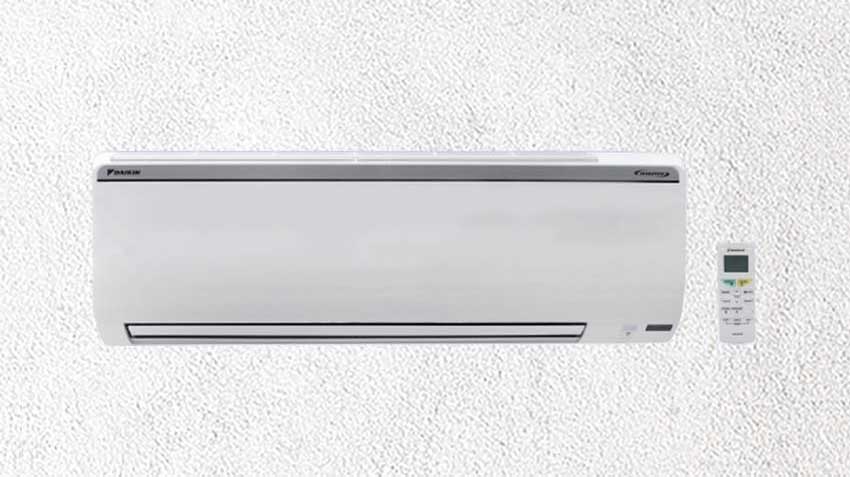

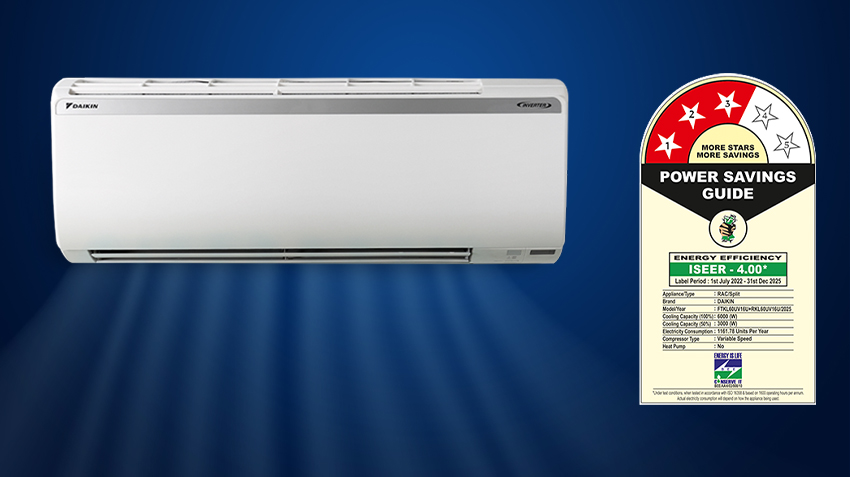

FTKL

Stabilizer Inside New age of Air-conditioning

Welcome the new age of air conditioning! Loaded with salient features, Daikin’s FTKL Series redefine modern air conditioning. Some of its great features are Dust PM2.5 lamp, Econo mode, Coanda airflow, Power chill operation and more.

Product category:

Available in (kW):

Color:
White

Salient Features

Coanda airflow

Coanda airflow
Make way for effective air circulation and efficient temperature distribution with Daikin’s Coanda airflow, designed to give the best air-conditioning experience. This function ensures cooling at corners of the room by streaming cool air upwards along the ceiling avoiding furniture or obstruction.

Econo mode

Econo mode
Set the limit for power consumption with Daikin's ECONO mode feature. This function enables efficient operation by limiting the maximum power consumption. This mode is one step towards Daikin's future innovation.

Indoor unit quiet operation

Indoor unit quiet operation
Your peace is here to stay with Daikin air conditioners indoor unit quiet operation. It optimises the airflow speed according to low noise level to give an uninterrupted comfort you desire. Switch on your Daikin AC and enjoy peaceful air conditioning experience.

Power chill operation

Cool down your house so fast even when outside temperature is soaring. Daikin's Power Chill operation Cools down 20% faster as compared to normal mode. Power chill ensures room temperature drops rapidly for immediate comfort.

Titanium apatite deodorising air purifying filter

The Titanium apatite deodorising air purifying filter in Daikin air purifiers combines the air-purifying filter and titanium apatite photocatalytic deodorizing filter in a single highly effective unit. The filter can last long if washed once every six months.

Specification

Model nameIndoor unitFTKL35TV16WCFTKL50TV16VC/FFTKL60TV16UCFTKL71TV16T
Outdoor unitRKL35TV16WCCVRKL50TV16VC/FRKL60TV16UCRKL71TV16T
Power supply1 50Hz 230V1 50Hz 230V1 50Hz 230V1 50Hz 230V
(220-240V)(220-240V)(220-240V)(220-240V)
 Power supply intakeOutdoor unitOutdoor unitOutdoor unitOutdoor unit
Cooling capacity Rated Full/Half (min.~max.)kW3.52 / 1.76 (1.07 ~3.7)5.0/2.5 (1.75~5.2)6.0/3.0 (2.0~6.0)7.1/3.55 (2.1~7.5)
Cooling capacity Rated Full/Half (min.~max.)Btu/h12000 / 6000
(3650~12600)
17100/8550
(6000~17700)
20500/10250
(6800~20500)
24200/12113
(7200~25600)
Power consumption Rated Full/Half (min.~max.)W1200 / 385 (210 - 1200)1670/557 (375~17501950/685(495-1950)2410/780 (600-3100)
Annual Power consumptionkWh682.27969.251163.611376.59
ISEER / ISEER RANKWh/Wh3.99/3*3.99/3*3.99/3*3.99/3*
Voltage RangeV160-265160-265160-265160-265
Operating currentCoolingA5.437.418.6510.6
Indoor unit
Panel colourWhiteWhiteWhiteWhite
Dimensions HxWxDmm298x800x229298 x 885 x 229298 x 885 x 229310 x 1100 x 239
(Package dimensions)mm375X895X325375 x 980 x 325375 x 980 x 325330x1230x385
Weight (Gross)kg10 (14)11 (16)11 (16)13 (18)
Airflow rate *1 X(Y)m3/min.13.4 (11.9)16.2 (14.3)16.6 (15.4)20.4(17.0)
Feet3/min (CFM)473(420)572(505)586(544)720(600)
Operation sound H/M/ML/L/SLCoolingdBA40/36/32/29/2645/42/40/38/3547/45/43/40/3849/47/45/42/39
Outdoor unit
Dimensions HxWxDmm550 x 675 x 284595 x 845 x 300595 x 845 x 300595 x 845 x 300
(Package dimensions)mm620x825x400680x1035x410680x1035x410680x1035x410
Weight (Gross)kg22 (28) / 22 (26)28 (35)/ 28 (33)-29
(36)/29 (34)
32 (39)/ 32 (37)39(47)
Operation sound (H)CoolingdBA51545658
Breaker sizeA15202020
Piping lengthCharge-lessm10101010
Max. lengthm20203020
Max. heightm15102010
Piping connectionGas/Liquidmm9.5/ 6.412.7 / 6.412.7 / 6.415.9 / 6.4
Operation limitCoolingoCDB19.4~5219.4~5219.4~5219.4~52

Measurement conditions:

  • Cooling capacity is based on: indoor temp. 27° CDB, 19° CWB; outdoor temp. 35° CDB, piping length 5 m.
  • Sound levels are based on temperature conditions 1. above with 5m piping length. These are anechoic conversion values. These values are normally somewhat higher during actual operation as a result of ambient conditions.

Cooling and heating capacities above are rounded off to first decimal. 1TR (Ton of Refrigeration) = ~3.517 kilowatt.

* X(Y) X-Air flow rate during fan operation.
Y-Air flow rate in wet (cooling) condition.

AS A PART OF CONTINOUS DEVELOPMENT AND UPDGRADATION THE PRODUCT IMAGE/ACCESSORY/FEATURE MAY BE DIFFERENT FROM ACTUAL PRODUCT AT THE TIME OF PURCHASE.
