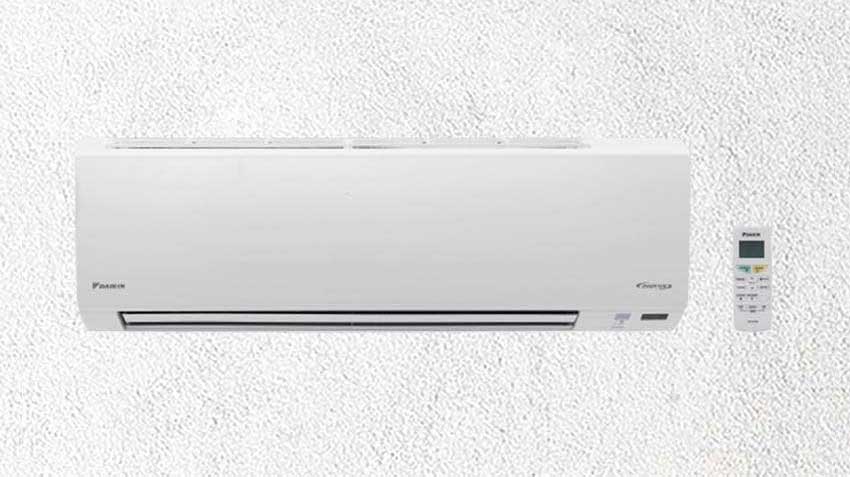

ATKL

Stabilizer Inside New age of Air-conditioning

Available in the capacities of 3.5, 5.0, and 6.0 kW, Dakin’s ATKL Series of air conditioners gives an unmatched air conditioning experience. Designed to deliver optimum performance, it boasts of some of the most unique features in the air conditioning industry.

Product category:

Available in (kW):

Color:
White

Salient Features

Ag ion filter

Coanda airflow

Coanda airflow operation gives you the best air-conditioning experience. The powerful air draft does not fall on your head directly, but it is steered upward letting air circulate into the corners of the room creating a comfortable ambience.

Econo mode

Econo mode
This function enables efficient operation by limiting the maximum power consumption. It is useful when using the air-conditioner and other electrical devices simultaneously on a shared electrical circuit.

Indoor unit quiet operation

Indoor unit quiet operation
This feature ensures low noise level resulting in sound sleep. It optimises the speed of the airflow according to low noise level to give you uninterrupted comfort.

Power chill operation

When the rooms needs to be cooled quickly in extreme heat, power chill ensures that the room temperature drops fast for immediate comfort.

Specification

Model nameIndoor unitATKL35TV16WCATKL50TV16VC/FATKL60TV16UC
Outdoor unitRKL35TV16WCRKL50TV16VC/FRKL60TV16UC
Power supply1 50Hz 230V1 50Hz 230V1 50Hz 230V
(220-240V)(220-240V)(220-240V)
 Power supply intakeOutdoor unitOutdoor unitOutdoor unit
Cooling capacity Rated Full/Half (min.~max.)kW3.52 / 1.76 (1.07 ~3.7)5.0/2.5 (1.75~5.2)6.0/3.0 (2.0~6.0)
Cooling capacity Rated Full/Half (min.~max.)Btu/h12000 / 6000 (3650~12600)17100 / 8550 (6000~17700)20500 / 10250 (6800~20500)
Power consumption Rated Full/Half (min.~max.)W1200 / 385 (210 - 1200)1670 / 557 (375~1750)1950 / 685 (495-1950)
Annual Power consumptionkWh682.27969.251163.61

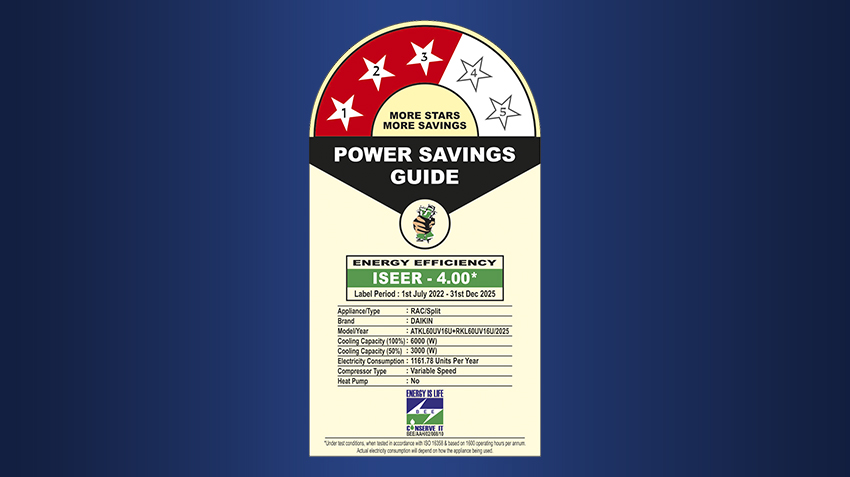

ISEER / ISEER RANKWh/Wh3.99/3*3.99/3*3.99/3*
Voltage RangeV160-265160-265160-265
Operating currentCoolingA5.437.418.65
Indoor unit
Panel colourWhiteWhiteWhite
Dimensions HxWxDmm298 x 800 x 229298 x 885 x 229298 x 885 x 229
(Package dimensions)mm375 x 895 x 325375 x 980 x 325375 x 980 x 325
Weight (Gross)kg10 (14)11 (16)11 (16)
Airflow rate *1 X(Y)m3/min.13.4 (11.9)16.2 (14.3)16.6 (15.4)
Feet3/min (CFM)473 (420)572 (505)586 (544)
Operation sound H/M/ML/L/SLCoolingdBA40/36/32/29/2645/42/40/38/3547/45/43/40/38
Outdoor unit
Dimensions (H x W x D)mm550x675x284595x845x300595x845x300
(Package dimensions)mm620x825x400680x1035x410680x1035x410
Weight (Gross)kg22 (28) / 22 (26)28 (35)/ 28 (33)-29 (36)/29 (34)32 (39)/ 32 (37)
Operation sound (H)CoolingdBA515456
Breaker sizeA152020
Piping lengthCharge-lessm101010
Max. lengthm202030
Max. heightm151020
Piping connectionGas/Liquidmm9.5 / 6.412.7 / 6.412.7 / 6.4
Operation limitCoolingoCDB19.4~5219.4~5219.4~52

Measurement conditions:

  • Cooling capacity is based on: indoor temp. 27° CDB, 19° CWB; outdoor temp. 35° CDB, piping length 5 m.
  • Sound levels are based on temperature conditions 1. above with 5m piping length. These are anechoic conversion values. These values are normally somewhat higher during actual operation as a result of ambient conditions.

Cooling and heating capacities above are rounded off to first decimal. 1TR (Ton of Refrigeration) = ~3.517 kilowatt.

* X(Y) X-Air flow rate during fan operation.
Y-Air flow rate in wet (cooling) condition.

AS A PART OF CONTINOUS DEVELOPMENT AND UPDGRADATION THE PRODUCT IMAGE/ACCESSORY/FEATURE MAY BE DIFFERENT FROM ACTUAL PRODUCT AT THE TIME OF PURCHASE.
