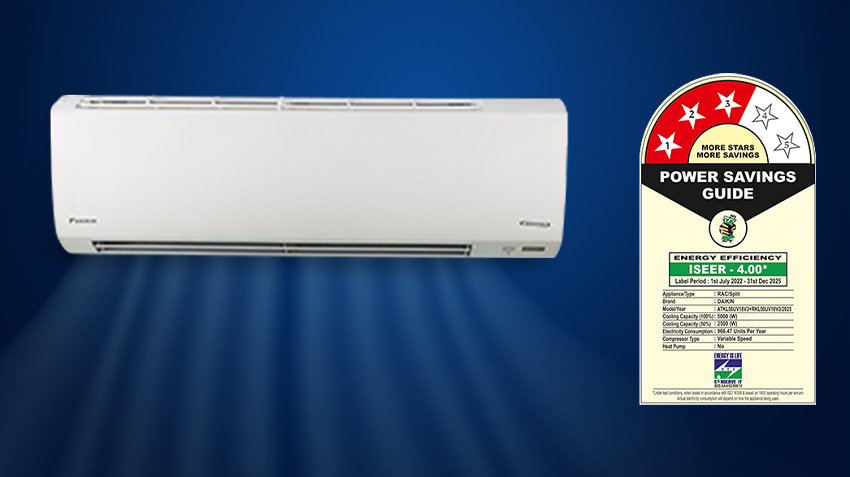

ATKL

Stabilizer Inside New age of Air-conditioning

Available in the capacities of 3.5, 5.0, and 6.0 kW, Daikin’s ATKL Series of air conditioners gives an unmatched air conditioning experience. Designed to deliver optimum performance, it boasts of some of the most unique features in the air conditioning industry.

Product category:

Available in (kW):

Color:
White

Salient Features

Ag ion filter

The silver particle anti-bacterial filter in Daikin air purifiers is embedded with silver particles that kills bacteria and keeps the indoor air safe and pure. Your comfort is our priority. Breathe a clean air with Daikin.

Coanda airflow

Coanda airflow
Make way for effective air circulation and efficient temperature distribution with Daikin’s Coanda airflow, designed to give the best air-conditioning experience. This function ensures cooling at corners of the room by streaming cool air upwards along the ceiling avoiding furniture or obstruction.

Econo mode

Econo mode
Set the limit for power consumption with Daikin's ECONO mode feature. This function enables efficient operation by limiting the maximum power consumption. This mode is one step towards Daikin's future innovation.

Indoor unit quiet operation

Indoor unit quiet operation
Your peace is here to stay with Daikin air conditioners indoor unit quiet operation. It optimises the airflow speed according to low noise level to give an uninterrupted comfort you desire. Switch on your Daikin AC and enjoy peaceful air conditioning experience.

Power chill operation

Cool down your house so fast even when outside temperature is soaring. Daikin's Power Chill operation Cools down 20% faster as compared to normal mode. Power chill ensures room temperature drops rapidly for immediate comfort.

Specification

Model nameIndoor unitATKL35TV16WCATKL50TV16VC/FATKL60TV16U
Outdoor unitRKL35TV16WCRKL50TV16VC/FRKL60TV16U
Power supply1 50Hz 230V1 50Hz 230V1 50Hz 230V
(220-240V)(220-240V)(220-240V)
 Power supply intakeOutdoor unitOutdoor unitOutdoor unit
Cooling capacity Rated Full/Half (min.~max.)kW3.52 / 1.76 (1.07 ~3.7)5.0/2.5 (1.75~5.2)6.0 (2.5~6.0)
Cooling capacity Rated Full/Half (min.~max.)Btu/h12000 / 6000 (3650~12600)17100 / 8550 (6000~17700)20500 (8500~20500)
Power consumption Rated Full/Half (min.~max.)W1200 / 385 (210 - 1200)1670 / 557 (375~1750)1970 (720-1970)
Annual Power consumptionkWh682.27969.251254.6
ISEER / ISEER RANKWh/Wh3.99/3*3.99/3*3.70/3*
Voltage RangeV160-265160-265160-265
Operating currentCoolingA5.437.418.67
Indoor unit
Panel colourWhiteWhiteWhite
Dimensions HxWxDmm298 x 821 x 235298 x 906 x 235298 x 885 x 229
(Package dimensions)mm375 x 915 x 330375 x 1000 x 330355 x 1010 x 390
Weight (Gross)kg10 (14)11 (16)11 (16)
Airflow rate *1 X(Y)m3/min.13.4 (11.9)16.2 (14.3)16.3
Feet3/min (CFM)473 (420)572 (505)576
Operation sound H/M/ML/L/SLCoolingdBA40/36/32/29/2645/42/40/38/3547/45/43/40/38
Outdoor unit
Dimensions (H x W x D)mm550 x 675 x 284595 x 845 x 300595 x 845 x 300
(Package dimensions)mm620 x 825 x 400680 x 1035 x 410(680 x 1035 x 410)
Weight (Gross)kg22 (28) / 22 (26)28 (35)/ 28 (33)-29 (36)/29 (34)35 (43)
Operation sound (H)CoolingdBA515456
Breaker sizeA152020
Piping lengthCharge-lessm101010
Max. lengthm202030
Max. heightm151020
Piping connectionGas/Liquidmm9.5 / 6.412.7 / 6.412.7 / 6.4
Operation limitCoolingoCDB19.4~5219.4~5219.4~52

Measurement conditions:

  • Cooling capacity is based on: indoor temp. 27° CDB, 19° CWB; outdoor temp. 35° CDB, piping length 5 m.
  • Sound levels are based on temperature conditions 1. above with 5m piping length. These are anechoic conversion values. These values are normally somewhat higher during actual operation as a result of ambient conditions.

Cooling and heating capacities above are rounded off to first decimal. 1TR (Ton of Refrigeration) = ~3.517 kilowatt.

* X(Y) X-Air flow rate during fan operation.
Y-Air flow rate in wet (cooling) condition.

AS A PART OF CONTINOUS DEVELOPMENT AND UPDGRADATION THE PRODUCT IMAGE/ACCESSORY/FEATURE MAY BE DIFFERENT FROM ACTUAL PRODUCT AT THE TIME OF PURCHASE.
