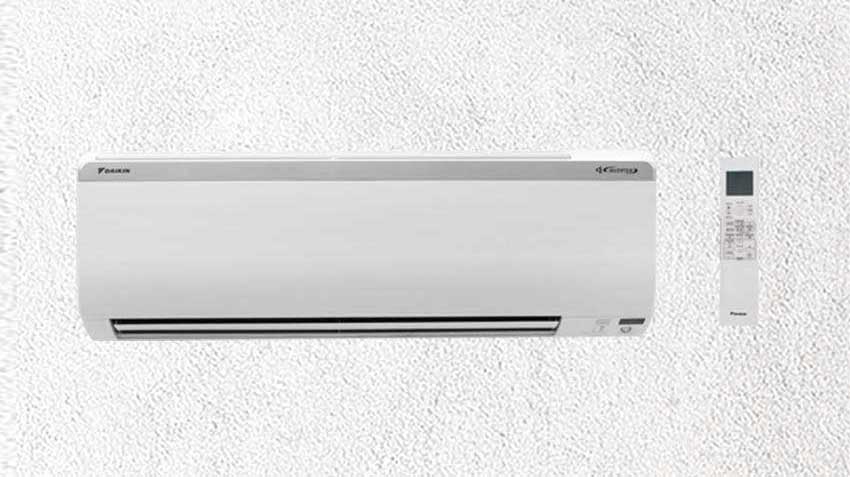

JTKJ

Cooling Only Salubrious Air-conditioning

Switch to health-giving air conditioning with Daikin’s JTKJ Series. Its patented streamer discharge technology ensures that you and your loved ones enjoy a high-class air conditioning experience that would be second to none.

Product category:

Available in (kW):

Color:
White

Salient Features

Coanda airflow

Coanda airflow operation gives you the best air-conditioning experience. The powerful air draft does not fall on your head directly, but it is steered upward letting air circulate into the corners of the room creating a comfortable ambience.

Indoor unit quiet operation

This feature ensures low noise level resulting in sound sleep. It optimises the speed of the airflow according to low noise level to give you uninterrupted comfort.

Intelligent eye

Intelligent Eye with its infra-red sensor automatically controls air conditioner operation according to human movement in a room. When there is no movement, it adjusts the temperature by 2° C for energy saving of up to 20%.

Patented Streamer Discharge

Streamer discharge reduces unpleasant smell and viruses inside the room cleaning the indoor air.

Power chill operation

When the rooms needs to be cooled quickly in extreme heat, power chill ensures that the room temperature drops fast for immediate comfort.

Specification

Model nameIndoor unitJTKJ35TV16UJTKJ50TV16UJTKJ60TV16U
Outdoor unitRKJ35TV16URKJ50TV16URKJ60TV16U
Power supply1 50Hz 230V1 50Hz 230V1 50Hz 230V
(220-240V)(220-240V)(220-240V)
 Power supply intakeOutdoor unitOutdoor unitOutdoor unit
Cooling capacity Rated Full/Half (min.~max.)kW3.62/1.81 (1.17~4.0)5.0/2.5 (1.0~6.0)6.0/3.0 (1.0~7.0)
Btu/h12350/6175
(4000~13600)
17100/8550
(3400~20500)
20500/10240
(3400~23900)
Power consumption Rated Full/Half (min.~max.)W822/281 (220-1300)1315/418 (200-1700)1665/545 (210-2250)
Annual Power consumptionkWh483744957
ISEER / ISEER RANKWh/Wh5.80 / 5*5.20 / 5*4.85 / 5*
Voltage RangeV160-265130-265130-265
Operating currentCoolingA3.85.87.4
Indoor unit
Panel colourWhiteWhiteWhite
Dimensions HxWxDmm298 x 885 x 229298 x 885 x 229298 x 885 x 229
(Package dimensions)mm(375 x 980 x 325)(375 x 980 x 325)(375 x 980 x 325)
Weight (Gross)kg11 (16)11 (16)11 (16)
Airflow ratem3/min.1314.516.3
Operation sound H/M/ML/L/SLCoolingdBA39/35/32/29/2642/38/34/31/2845/41/37/33/30
Outdoor unit
Dimensions (H x W x D)mm550 x 765 x 285595 x 845 x 300595 x 845 x 300
(Package dimensions)mm(642 x 932 x 380)(680 x 1035 x 410)(680 x 1035 x 410)
Weight (Gross)kg32(38)39(47)39(47)
Operation sound H/LCoolingdBA48/4447/4449/46
Breaker sizeA152020
Piping lengthCharge-lessm101010
Max. lengthm203030
Max. heightm152020
Piping connectionGas/Liquidmm9.5/ 6.412.7 / 6.412.7 / 6.4
Operation limitCoolingoCDB10~5010~5010~50

Measurement conditions:

  • Cooling capacity is based on: indoor temp. 27° CDB, 19° CWB; outdoor temp. 35° CDB, piping length 5 m.
  • Sound levels are based on temperature conditions 1. above with 5m piping length. These are anechoic conversion values. These values are normally somewhat higher during actual operation as a result of ambient conditions.

Cooling and heating capacities above are rounded off to first decimal. 1TR (Ton of Refrigeration) = ~3.517 kilowatt.

AS A PART OF CONTINOUS DEVELOPMENT AND UPDGRADATION THE PRODUCT IMAGE/ACCESSORY/FEATURE MAY BE DIFFERENT FROM ACTUAL PRODUCT AT THE TIME OF PURCHASE.
