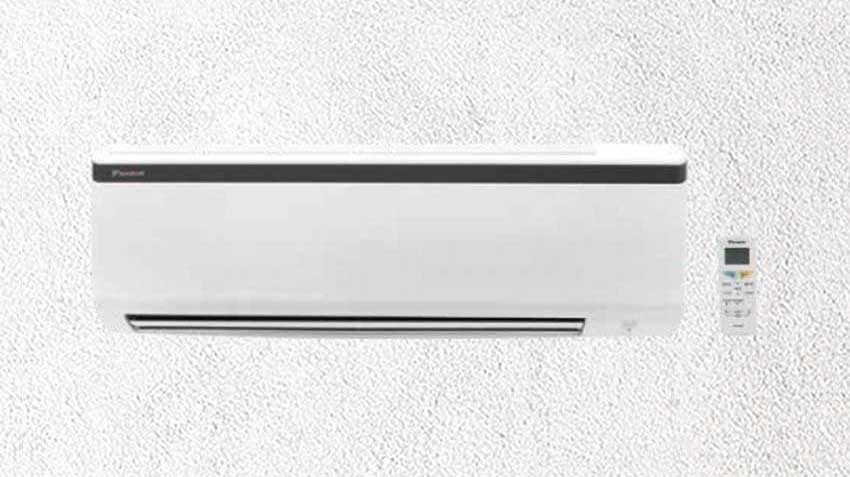

GTQ

Cooling Only Extra comfort superior cooling

Made to perform, Daikin’s GTQ Series promises superior level of comfort and exceptional cooling performance. Just set the temperature you want to have and its advanced compressor will turn your place into a place you always wished for.

Product category:

Available in (kW):

Color:
White

Salient Features

Coanda airflow

Coanda airflow operation gives you the best air-conditioning experience. The powerful air draft does not fall on your head directly, but it is steered upward letting air circulate into the corners of the room creating a comfortable ambience.

Econo mode

This function enables efficient operation by limiting the maximum power consumption. It is useful when using the air-conditioner and other electrical devices simultaneously on a shared electrical circuit.

Good sleep off timer

Good sleep off timer offers automatic temperature increase to avoid excessive cooling. When Good sleep off operation starts, the set temperature will increase gradually by 2°C in the next 2 hours.

Power chill operation

When the rooms needs to be cooled quickly in extreme heat, power chill ensures that the room temperature drops fast for immediate comfort.

Self-diagnosis

The machine auto detects the error and shows the related code on the remote screen. Now you can easily self diagnose the error and report it to your Daikin authorised service centre for a quick resolution.

Specification

Model name Indoor unit GTQ35TV16X2 GTQ50TV16U1 GTQ60TV16U2
Outdoor unit RQG35TV16X2 RQG50TV16U1 RQG60TV16U2
Power supply 1 50Hz 230V 1 50Hz 230V 1 50Hz 230V
(220-240V) (220-240V) (220-240V)
  Power supply intake Outdoor unit Outdoor unit Outdoor unit
Cooling capacity kW 3.35 5.2 6.4
Rated Btu/h 11450 17750 21800
Power consumption W 971 1507 1855
ISEER W/W 3.45 3.45 3.45
ISEER Rank   2* 2* 2*
Operating current Cooling A 4.3 6.9 8.5
Indoor unit
Panel colour White White White
Dimensions H x W x D mm 283 x 800 x 198 298 x 885 x 229 298 x 885 x 229
(Package dimensions) mm (265 x 855 x 340) (375 x 980 x 325) (375 x 980 x 325)
Weight (Gross) kg 8 (12) 11 (16) 11 (16)
Airflow rate m3/min. 10.6 16.2 16.6
Operation sound H/M/L/SL Cooling dBA 40/35/30/-- 45/41/35 47/41/35/--
Outdoor unit
Dimensions H x W x D mm 550 x 765 x 285 595 x 845 x 300 595 x 845 x 300
(Package dimensions) mm (642 x 932 x 380) (680 x 1035 x 410) (680 x 1035 x 410)
Weight (Gross) kg 31 (37) 40 (46) 44 (50)
Operation sound H/L Cooling dBA 51/-- 54/-- 56/--
Breaker size A 15 15 20
Piping length Charge-less m 10 10 10
Max. length m 20 20 20
Max. height m 15 10 10
Piping connection Gas/Liquid mm 9.5/ 6.4 12.7/ 6.4 12.7/ 6.4
Operation limit Cooling oCDB 19.4~50 19.4~50 19.4~50

Measurement conditions:

  • Cooling capacity is based on: indoor temp. 27° CDB, 19° CWB; outdoor temp. 35° CDB, piping length 5 m.
  • Sound levels are based on temperature conditions 1. above with 5m piping length. These are anechoic conversion values. These values are normally somewhat higher during actual operation as a result of ambient conditions.

Cooling and heating capacities above are rounded off to first decimal. 1TR (Ton of Refrigeration) = ~3.517 kilowatt.

AS A PART OF CONTINOUS DEVELOPMENT AND UPDGRADATION THE PRODUCT IMAGE/ACCESSORY/FEATURE MAY BE DIFFERENT FROM ACTUAL PRODUCT AT THE TIME OF PURCHASE.
